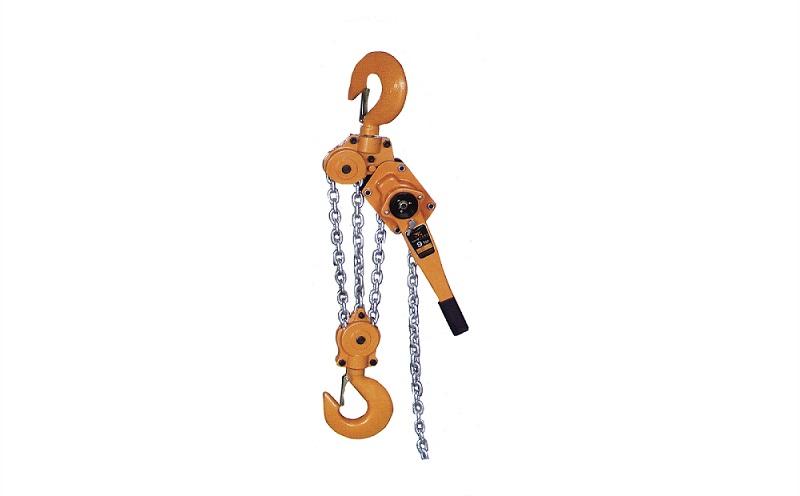

HSH 手板葫蘆
HSH series chain hoist
技術參數
| 型 號 Type |
HSH3/4 |
HS-C1 1/2 |
HSH3 |
HSH6 |
|
|
起重量 capacity (T) |
0.75 |
1.5 |
3 |
6 |
|
|
標準的起重高度 (M) Standard lifting height |
1.5 |
1.5 |
1.5 |
1.5 |
|
|
試驗載荷 Test load (T) |
1.1 |
2.2 |
4.41 |
7.35 |
|
|
兩鉤間最小距離 (MM) Hmin head room(hook to hook)Hmin |
303 |
365 |
485 |
600 |
|
|
滿載時手鏈拉力 (N) Hand pull force infull loading |
196 |
206 |
324 |
343 |
|
|
起重鏈行數 (MM) No. of load chain full lines |
1 |
1 |
1 |
2 |
|
|
起重鏈條圓鋼直徑 (MM) Diumeter of load chain |
6 |
7 |
10 |
10 |
|
|
手柄長度 Length of handle |
290 |
410 |
410 |
410 |
|
|
主要尺寸 Dimensions |
A |
139 |
174 |
200 |
200 |
|
B |
84 |
108 |
115 |
115 |
|
|
C |
153 |
160 |
185 |
230 |
|
|
D |
38 |
45 |
50 |
65 |
|
|
凈重 Net Weight |
6.7 |
11 |
17.5 |
25.5 |
|
|
紙箱裝箱毛重 Weight |
7.3 |
12 |
18.6 |
26.6 |
|
|
紙箱裝箱尺寸(長*寬*高) (cm) Packing Size Carton (L * W * H) |
24x16x15 |
24x16x15 |
26x16x15 |
31x21x17 |
|
|
紙箱裝箱，起重高度每增加1米所增加重量 (kg) In case of carton packing,extra weight per 1m more |
0.8 |
1.4 |
2.2 |
4.4 |
|
|
紙箱裝箱，每20英尺貨柜所裝數量 (kg) QTY/20' FC1(carton) |
2740 |
1667 |
1075 |
752 |
|
