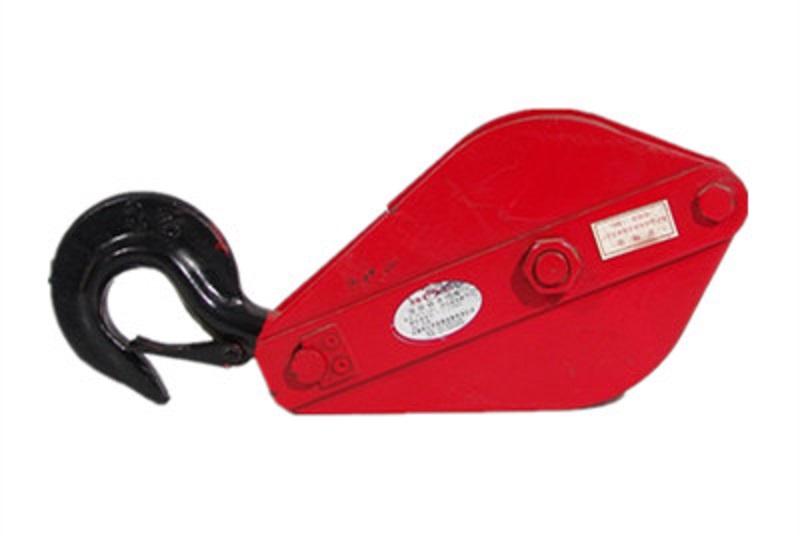

單輪滑車
Block with single wheel
技術(shù)參數(shù)
|
產(chǎn)品代碼 Product Code |
滑車型號 Pulley Type |
額定載荷 Rated load T |
適用鋼絲繩直徑 Applicable to wire rope diameter mm |
滑輪直徑 Pulley diameter mm |
|
XH1001 |
THGK1-0.5t |
0.5t |
6.2-7.7 |
71 |
|
XH1002 |
THGK1-1t |
1t |
7.7-11 |
85 |
|
XH1003 |
THGK1-2t |
2t |
11-14 |
112 |
|
XH1004 |
THGK1-3.2t |
3.2t |
12.5-15.5 |
132 |
|
XH1005 |
THGK1-5t |
5t |
15-18.5 |
160 |
|
XH1006 |
THGK1-8t |
8t |
19.5-23 |
210 |
|
XH1007 |
THGK1-10t |
10t |
23-24.5 |
240 |
|
XH1008 |
THGK1-16t |
16t |
28-31 |
310 |
|
XH1009 |
THGK1-20t |
20t |
31-35 |
355 |
